Camera Head
Cable Reel
DVR Unit

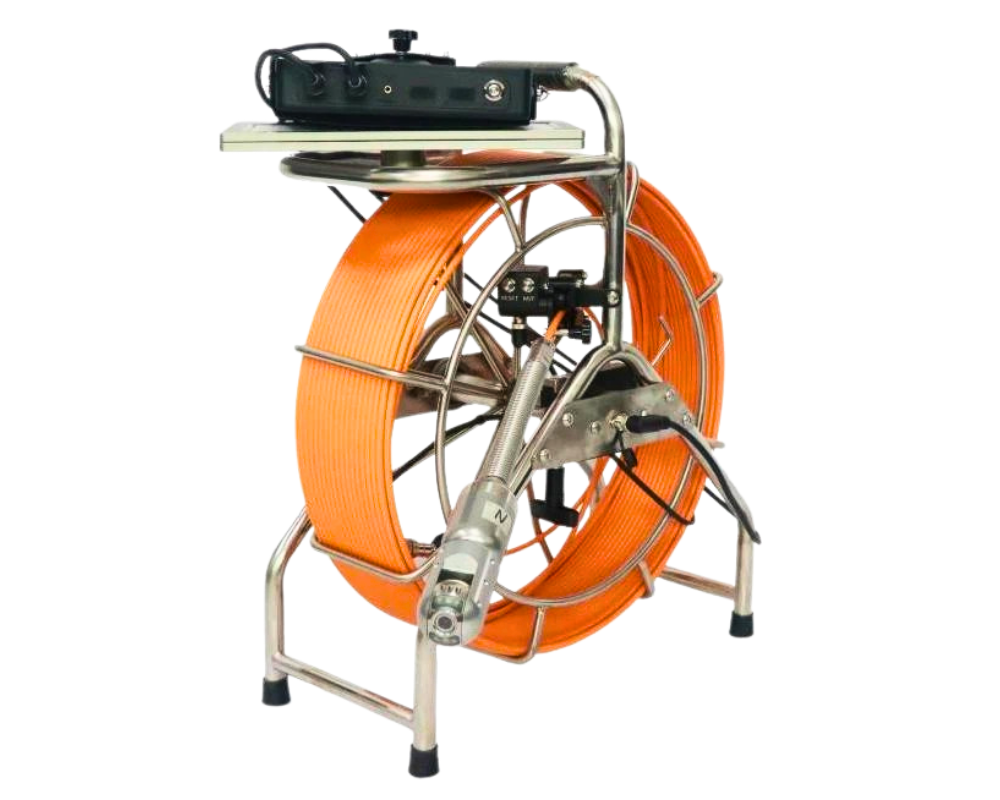

The GLF-V45-S7MM is a complete inspection system for pipeline inspection and industrial sewer inspection. It includes a 45mm dual-rotation camera head, an 8-inch AHD DVR control unit, and a fiberglass cable reel. The power supply is DC 12V. The control box also has a built-in 7000mA battery.
| Description | Details |
|---|---|
| Overview | Complete inspection system with 45mm dual-rotation camera head, 8-inch AHD DVR, and 7mm fiberglass cable reel for professional sewer inspection. |
| Product Model | GLF-V45-S7MM |
| Screen Size | 8-inch IPS LCD, 1280x720 resolution |
| Cable | 7mm Fiberglass Rod Push Cable, 60m |
| Camera Head | 1/3 CMOS, 1.3MP pixel AHD dual 45mm, 360° pan, 6 LED high beam (down/side view) |
| Power Supply | 12V 7000mA Rechargeable Lithium-Ion Battery |
| Camera Size | 45mm x 107mm |
| Waterproof Rating | IP68, up to 3 bar |
| Horizontal View Range | 101 degrees |
| DVR Unit | 8-inch HD IPS LCD, 720P recording, USB wireless keyboard, USB storage |
| Reel Size | L51 x W25 x H64 cm |
45mm camera head with 360° pan and 101° horizontal view, equipped with high-beam LEDs for clear imaging in all conditions.

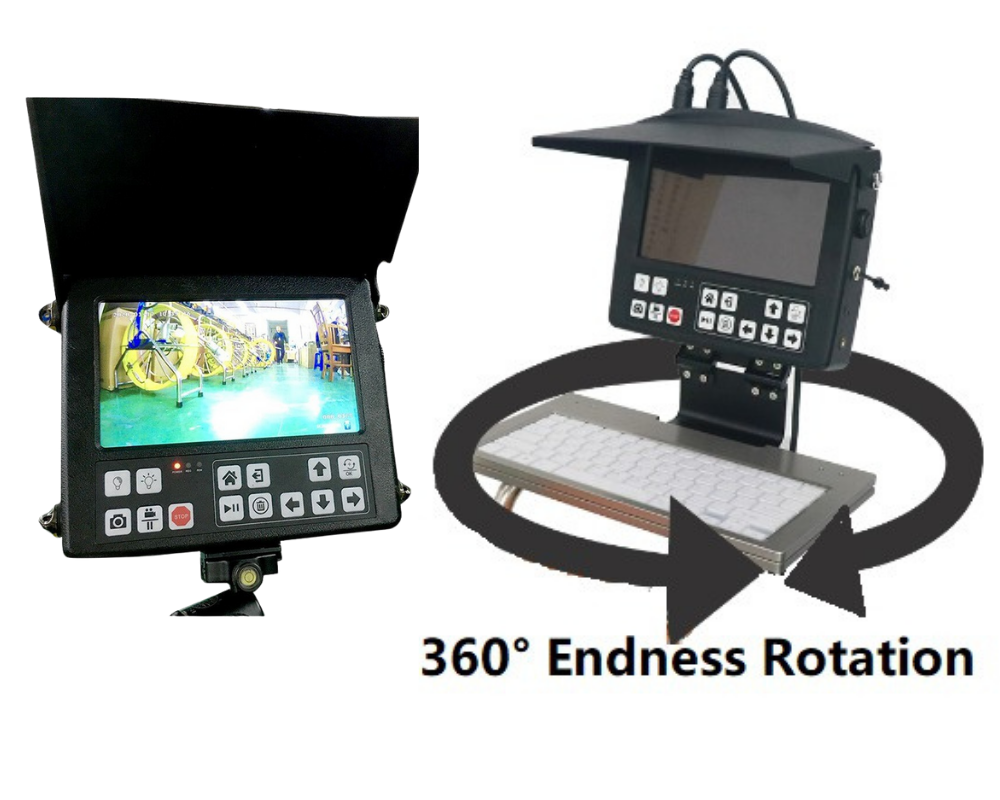

8-inch HD IPS LCD with 720P recording and USB wireless keyboard for real-time data entry.
Built-in 7000mA lithium-ion battery for extended operation without external power.
IP68-rated camera head, resistant up to 3 bar, with a sapphire crystal lens for durability.

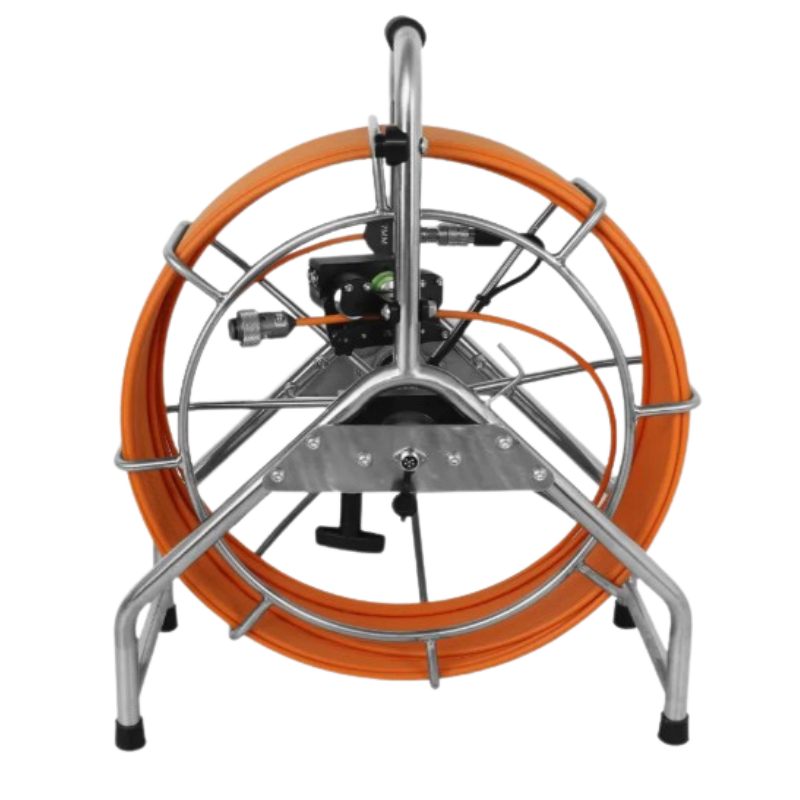

7mm fiberglass pushrod cable with 60m length and digital meter counter for precise navigation.
DVR unit can be fixed on the reel, held by hand, or hung on the neck for flexible operation.
